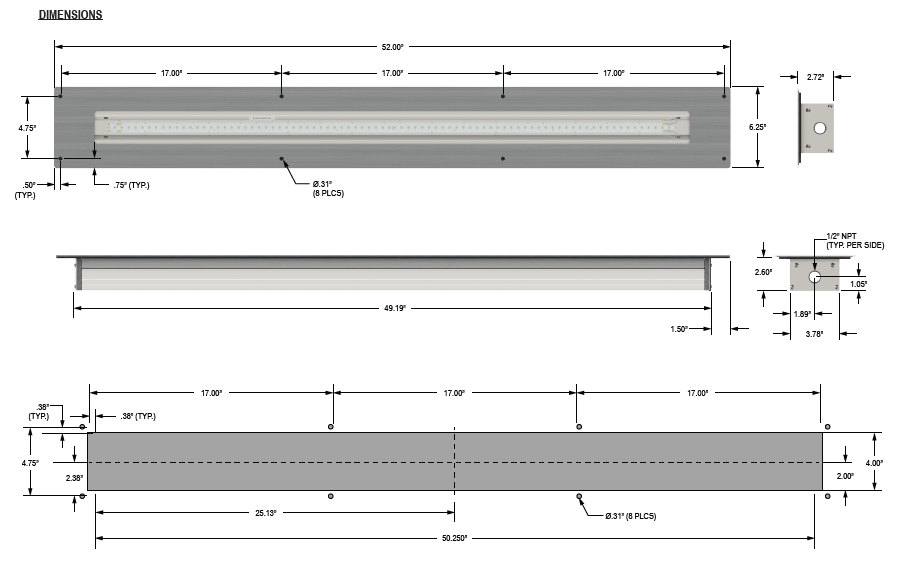

Paint Booth Light Fixture - Single Row Recessed LED Strip Light - Hazardous Location - 6.25" x 52"

Paint Booth Light Fixture - Single Row Recessed LED Strip Light - Hazardous Location - 6.25" x 52"

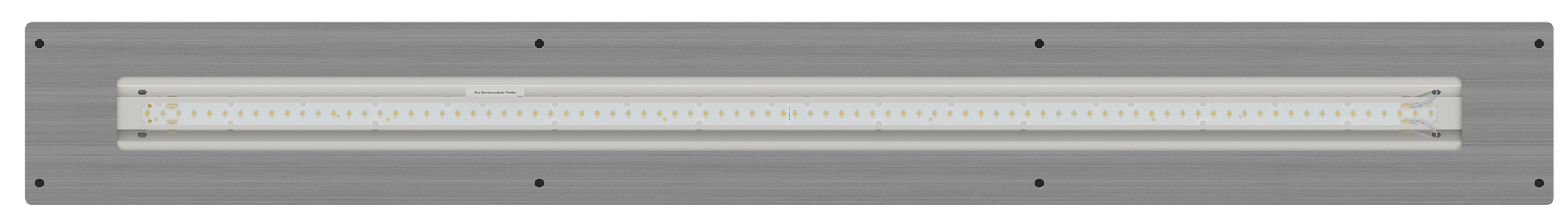

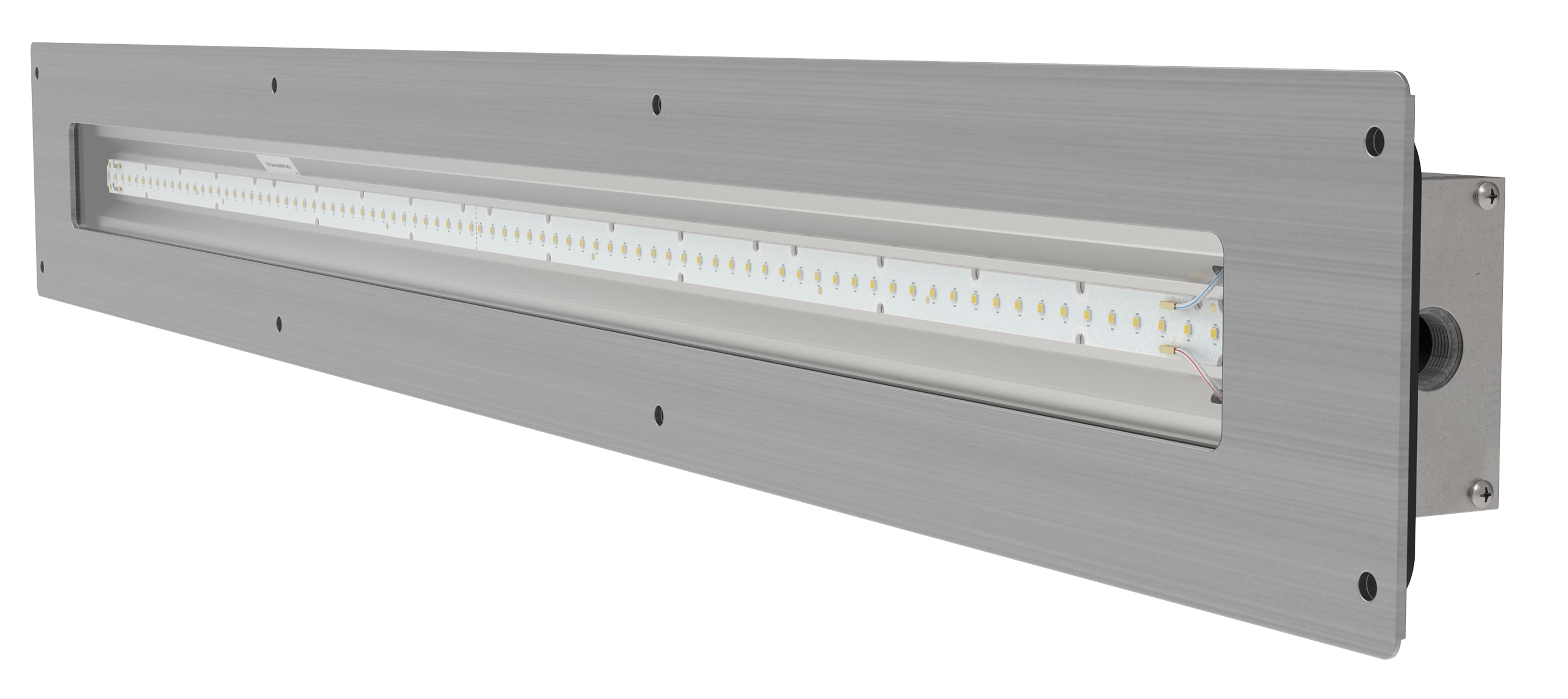

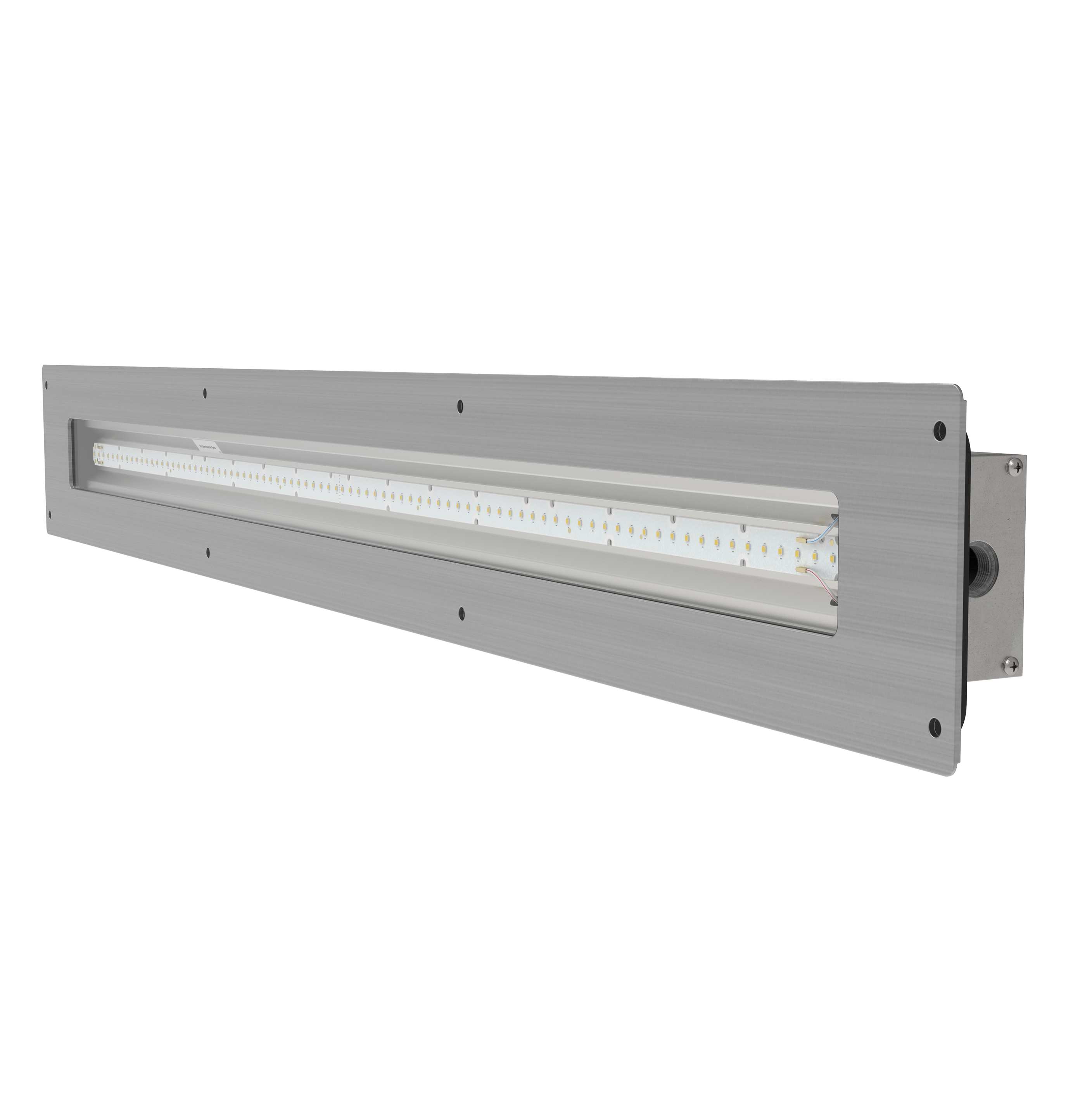

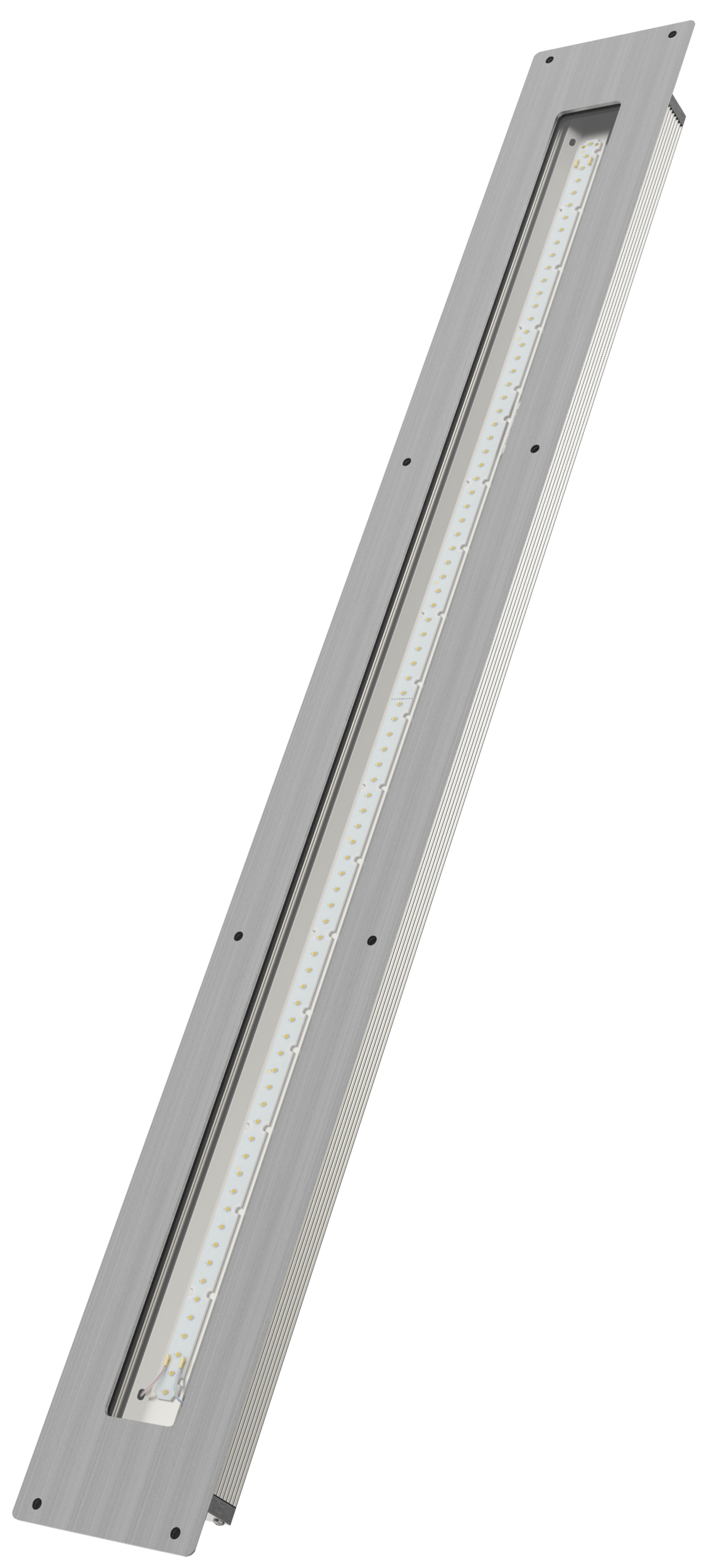

The AYLF-65W-1-CG-D-5K is a factory-sealed recessed LED light bar designed for use in hazardous location environments such as liquid paint and powder coating booths. Engineered to meet Class I, Division II standards, this fixture combines energy-efficient LED technology with durable aluminum housing and clear tempered glass to provide bright, reliable lighting without the need for routine maintenance or interlock switches.

Hazardous Location Certified:
UL844 / CSA certified for Class I, Division II (Groups A, B, C, D) and Class II, Division II (Groups F, G) hazardous locations. Also Paint Spray Listed, making it ideal for spray booth environments.

Energy-Efficient Dimmable LED Technology:
65W LED light engine delivers bright, uniform illumination with lower energy consumption compared to traditional fixtures. Featuring 0-10V dimming capability, this fixture offers seamless brightness adjustment, optimal energy efficiency, and consistent light output

Daylight-White Color Accuracy:
5000K color temperature with CRI >80 provides natural, accurate color rendering for tasks such as coating and surface inspection.

Durable, Maintenance-Free Construction:

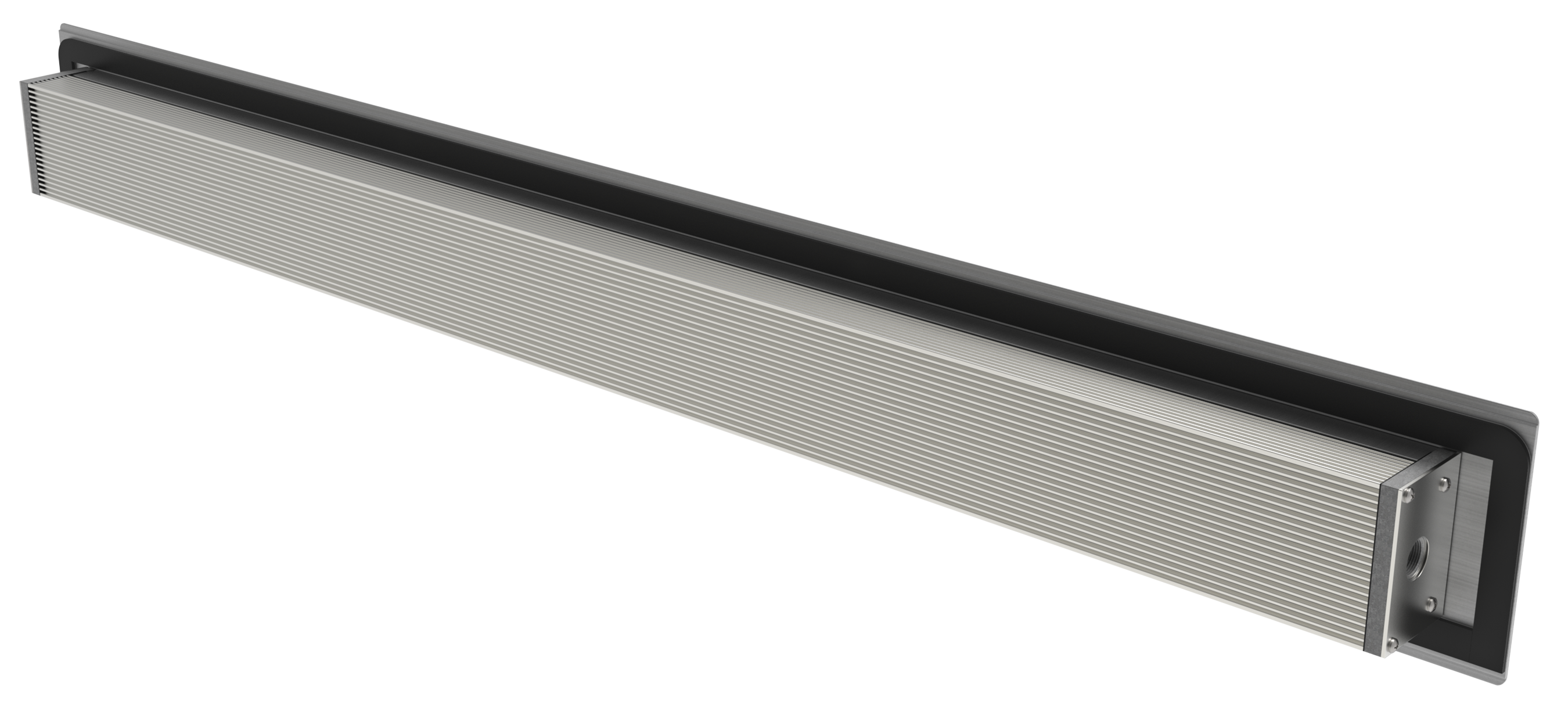

• Aluminum extrusion housing for superior heat dissipation

• Clear tempered glass lens for impact resistance

• Sealed, no-service design with silicone-free gaskets

• Withstands up to 71°C bake cycle for 90 minutes (fixture power off)

Flexible Power & Control:

• Operates on 120–277V input

• 0-10V dimming capability

• Surge protection up to 6kV

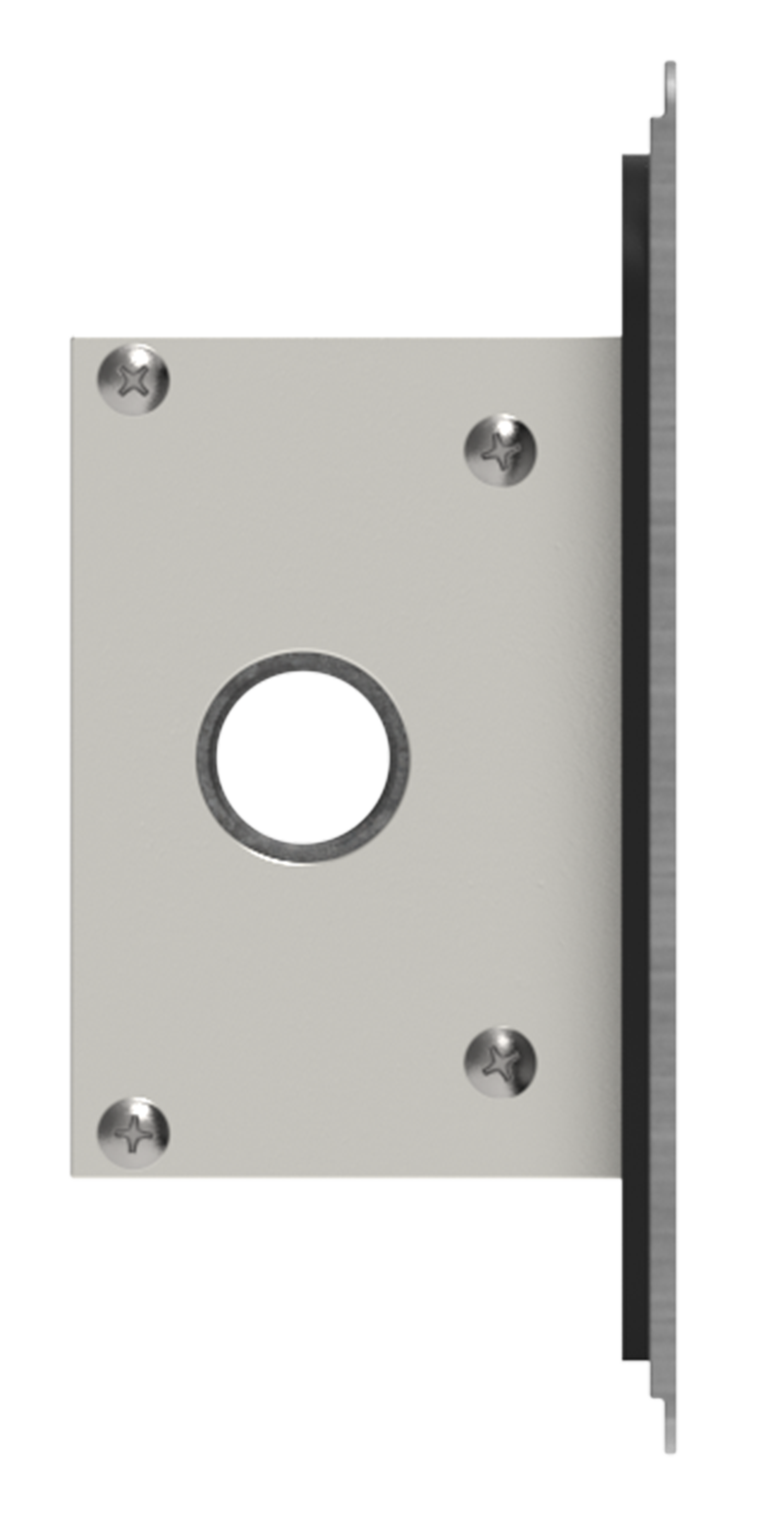

• Daisy-chainable with through-feed circuit and 5" wire whip leads

Optional Accessories:
Clear (100599) or diffused (100598) blast covers available upon request for added protection.

Specifications:

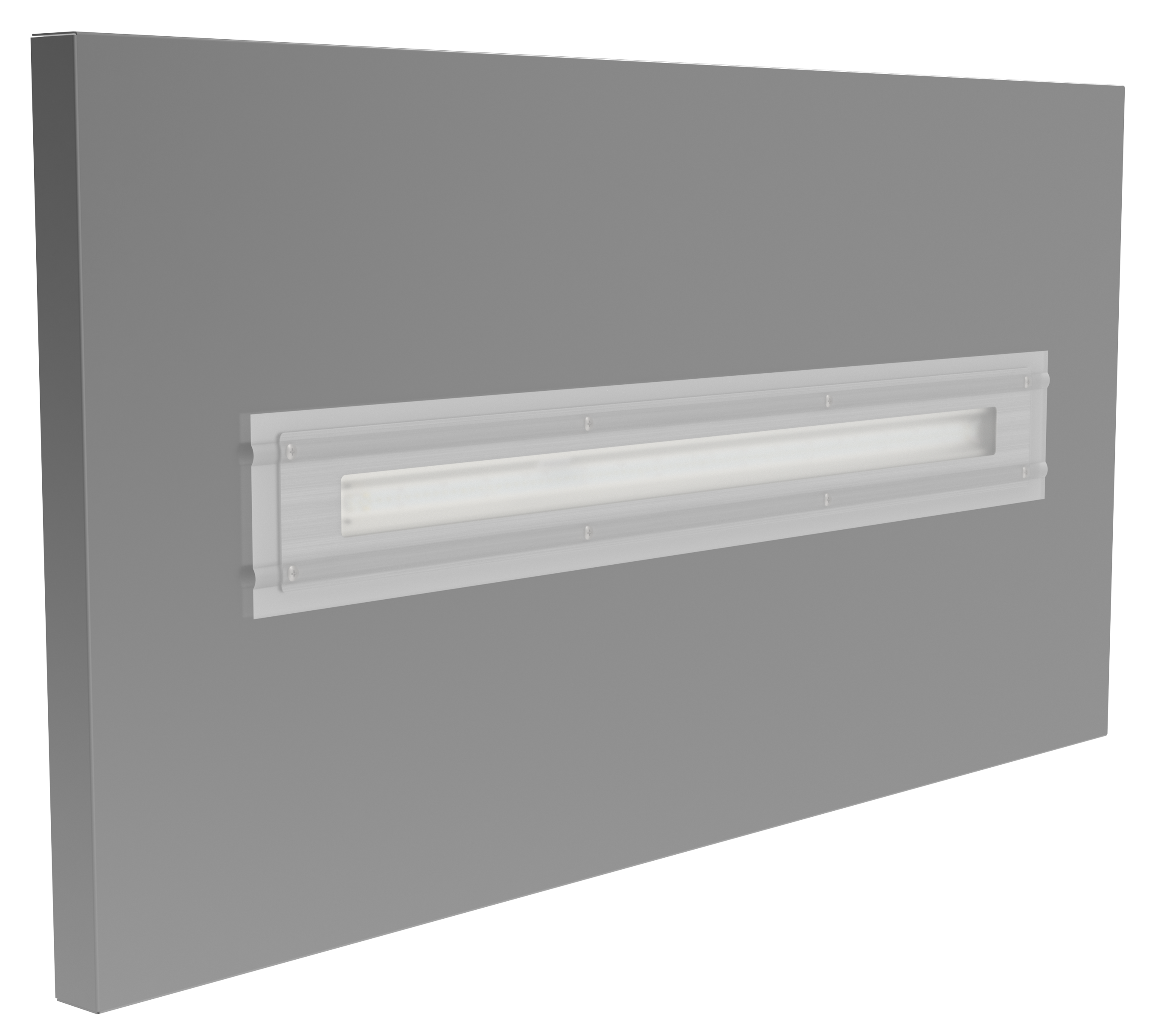

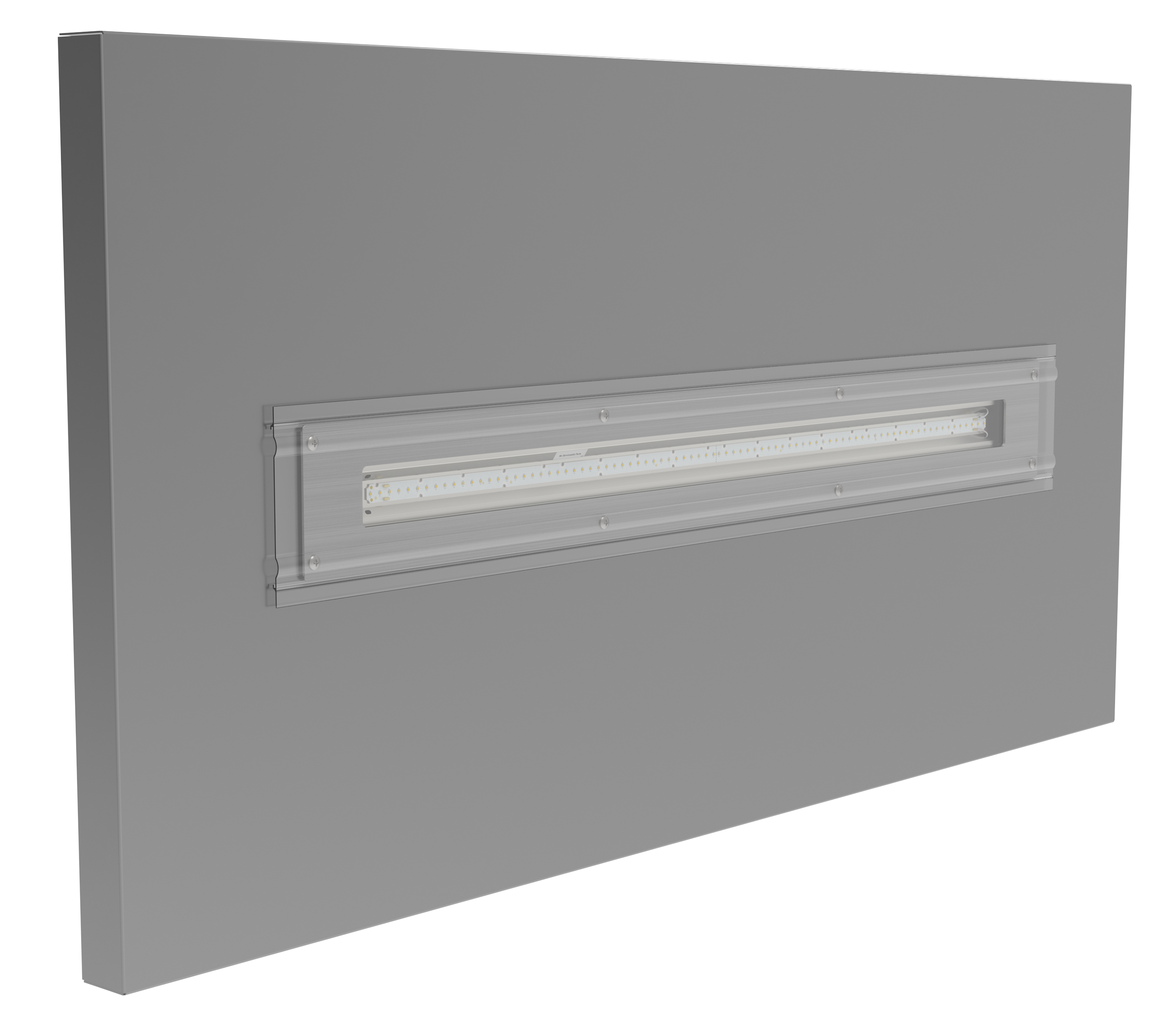

• Fixture Type: Single-row recessed LED light bar

• Material: Aluminum extrusion housing with tempered glass lens

• Length: 4 ft. (nominal)

• Power Input: 120–277VAC (50/60Hz)

• Wattage: 65W

• CCT: 5000K (Daylight)

• CRI: 80+ (typical)

• Dimming: 0-10V dimmable

• Certifications:

  • UL844 / CSA-C22.2 No.137 (Hazardous Locations)

  • UL1598 / CSA-C22.2 No.250 (Wet/Damp Locations)

  • Paint Spray Listed

• Temperature Rating: -25°C to 55°C ambient

• Surge Protection: 6kV

• Access Type: Factory-sealed, no-service design

• Warranty: 5 years Manufacturers Warranty
